A segmented blade’s rim is broken into teeth separated by deep gaps called gullets. Each segment strikes the tile edge like a small hammer, concentrating force on the glaze.
The gullets let air circulate so the blade can run dry, but that same interrupted edge is what creates the hammering. Halfway through a bathroom floor, the segmented blade I’d grabbed for speed was chipping every cut edge, so I swapped to a continuous rim and finished the job without another chip.
Concrete shrugs off that impact. Dense, brittle porcelain does not. The glaze chips and the tile cracks. A continuous rim removes the interrupted edge entirely, shearing material instead of hammering it.
Key Takeaways
- Segmented rims cut by hammering impact rather than shearing: the gullets that enable dry cutting are what chip porcelain glaze.
- Air cooling through the gullets removes the water cushion that would otherwise absorb shock.
- A continuous rim is the only reliable choice for visible porcelain edges.
- The wrong blade costs more in ruined tile than the blade itself.
Expert Tip: If a salesperson or packaging suggests a segmented blade is fine for porcelain because it cuts fast, treat that as a red flag: the speed comes from impact, and impact is exactly what breaks porcelain glaze.
A segmented blade cuts concrete fast and chips porcelain glaze.
Side-by-Side Comparison: Continuous Rim vs Segmented Blades
The segmented blade’s hammering action makes the comparison almost unfair. Put the two rims side by side and the decision for porcelain stops being a debate.
A continuous rim can run dry on thin porcelain. We found that out cutting rectified porcelain under 25 mm thick with a dry-cut continuous blade on a grinder. The 1/8 in segment thickness held up fine and the edge came out cleaner than any segmented blade we’d used on the same tile.
| Attribute | Continuous Rim Blade | Segmented Blade | Best Choice for Porcelain |
|---|---|---|---|
| Rim design | Solid, uninterrupted diamond-coated edge | Rim broken into segments separated by gullets | Continuous rim |
| Cutting action | Shears material with constant contact | Hammers material with interrupted impact | Continuous rim |
| Finish quality on porcelain | Smooth, precise, minimal chipping | Rough, prone to chipping and cracking | Continuous rim |
| Speed on porcelain | Slower, deliberate feed | Faster but at the cost of finish | Continuous rim* |
| Cooling requirement | Mainly wet-cut | Runs dry via gullet airflow | Continuous rim |
| Dry cutting suitability | Limited; some blades built for dry use on thin material | Excellent; gullets circulate air | Continuous rim |
| Risk of chipping or cracking tile | Low | High | Continuous rim |
| Bond hardness needed | Soft bond to keep diamonds exposed | Hard bond to survive impact | Continuous rim |
| Typical applications | Tile, porcelain, glass, granite | Aggressive concrete, masonry | Continuous rim |
| Blade life on porcelain | Longer life with proper cooling | Shorter life; impact dulls diamonds unevenly | Continuous rim |
*Turbo rim blades split the difference on speed and finish; see the turbo rim section.
Rim type is only half the decision. Cooling is the next variable that determines whether a blade survives porcelain.
Wet vs Dry Cutting Guidance for Porcelain
With the rim type settled, the next failure point is heat at the cut line. Porcelain is dense enough that the blade and tile both pay for every degree of friction: the bond starts glazing, the diamonds stop cutting and the tile cracks from thermal shock.
Wet cutting is the default for porcelain. Water cools the blade and suppresses dust and continuous rim blades are mainly used wet. Dry cutting is possible only with a blade explicitly rated for dry use, such as a porcelain-specific continuous rim blade. Running a wet-only blade dry destroys it rapidly.
Expert Tip: Never run a wet-only blade dry: the bond glazes, the diamonds stop cutting, and the blade is effectively ruined after one overheated pass.
Segmented blades cut without coolant because air circulates through the segments, but that air cooling is insufficient for porcelain and can chip or crack tile.
Do you need a wet saw for porcelain, or can the grinder do it dry? I’d have said wet, until a job where the wet saw wouldn’t fit the space. I ran a Rubi CPR, a continuous rim blade rated for dry cutting on porcelain under 25 mm, on an angle grinder. It cut clean, no chipping, no glazing. The manufacturers aren’t wrong about wet being the default. Dry works when the blade is built for it.
Match the blade’s wet/dry rating to your tool and job. Never assume a blade works both ways.
Product Recommendation: For wet cutting, a 10-inch continuous rim wet saw blade such as the Crowne Pro-Series is a strong choice; for dry cutting on an angle grinder, use a porcelain-specific continuous rim blade rated for dry use, such as the Rubi CPR.
Cooling only works if the blade’s bond is matched to porcelain’s density. That match is the next decision.
Blade Bond Hardness: Why Porcelain Needs a Soft Bond
Heat control assumes the blade keeps cutting, which depends on the bond wearing at the right rate. The bond is the metal or resin matrix holding the diamonds, the core mechanism behind how diamond blades work. As it wears, fresh diamond is exposed. Wear too slowly and the blade glazes: the diamonds dull over and the blade stops cutting cleanly.
Porcelain’s density and brittleness make a hard bond the wrong choice. It holds dull diamonds too long, generating heat and chipping the glaze. A soft bond sheds them at the right rate.
Glazing is the visible failure. The blade stops cutting cleanly, so you push harder and that extra pressure chips the glaze. Read the label for ‘porcelain’ or ‘soft bond’ and match to material thickness. Rubi’s CPR continuous rim is built for porcelain stoneware under 25 mm; Zenesis continuous rim porcelain blades run 4 to 14 inches.
25 mm is the thickness Rubi rates its CPR blade for, but the label doesn’t warn you that a hard bond will still glaze if you feed it dry and fast. The blade stops cutting and you push harder, which is exactly when the glaze chips.
Expert Tip: Choose a blade labeled for porcelain or stoneware, not a general-purpose tile blade, because its bond and diamond concentration are matched to porcelain’s density and brittleness.
Product Recommendation: Keep a 1/2 x 1/2 x 6 inch diamond dressing stone on hand to refresh a glazed continuous rim blade, but use it sparingly because dressing removes some worn diamonds.
Blade and bond chosen, the remaining half of chip-free cuts is technique.
Step-by-Step: How to Cut Porcelain Without Chipping
Blade and bond are chosen. Technique determines whether they perform as intended. A soft-bond continuous rim on the right tool is only half the job; the other half is how you set up, cool, feed and finish the cut. These five steps turn blade selection into a repeatable process for cutting porcelain without chipping.
Step 1: Choose the Right Blade and Tool
Match the blade and tool to the cut before anything else. On a wet saw, a continuous rim blade is the default for porcelain; the uninterrupted edge shears through dense, brittle material without the hammering impact of gullets. On an angle grinder, use a dry-rated continuous rim or turbo rim and keep the material under 25 mm thick. A snap cutter earns its place only for straight cuts on thinner tile, where the score-and-snap action avoids blade contact entirely.
The first time I cut a rectified porcelain floor tile on a dry grinder, I grabbed a segmented blade out of habit. The edge looked like a dog had chewed it. Swapping to a continuous rim with a 1/8 in segment thickness changed the result completely, same grinder, same tile, same hands. The blade was the variable I had been ignoring.
Expert Tip: Feed rate is the most underrated variable, a continuous rim blade pushed too hard chips porcelain just as badly as a segmented blade, so slow down before you blame the blade.
Step 2: Support the Tile Fully
Large-format and rectified porcelain will crack under its own weight if any part of it hangs unsupported. Support the full tile and the offcut.
On a wet saw, use the sliding table and keep the offcut from dropping at the end of the cut; a hand under it or a support block does the job.
On a flat surface with a grinder, lay the tile on a stable board or foam backer so nothing flexes mid-cut. A tile that moves while the blade is in it is a tile that chips.
Step 3: Set Up Cooling
Confirm cooling before the blade touches tile. On a wet saw, check that water is flowing across the blade and pooling on the tile surface, not just misting.
On a dry grinder, keep a spray bottle within reach and wet the cut line, then pause every few inches to re-wet and let the blade cool. Porcelain is dense enough to hold heat and a hot blade glazes over fast.
Once the bond stops wearing, the diamonds dull and the chipping starts.

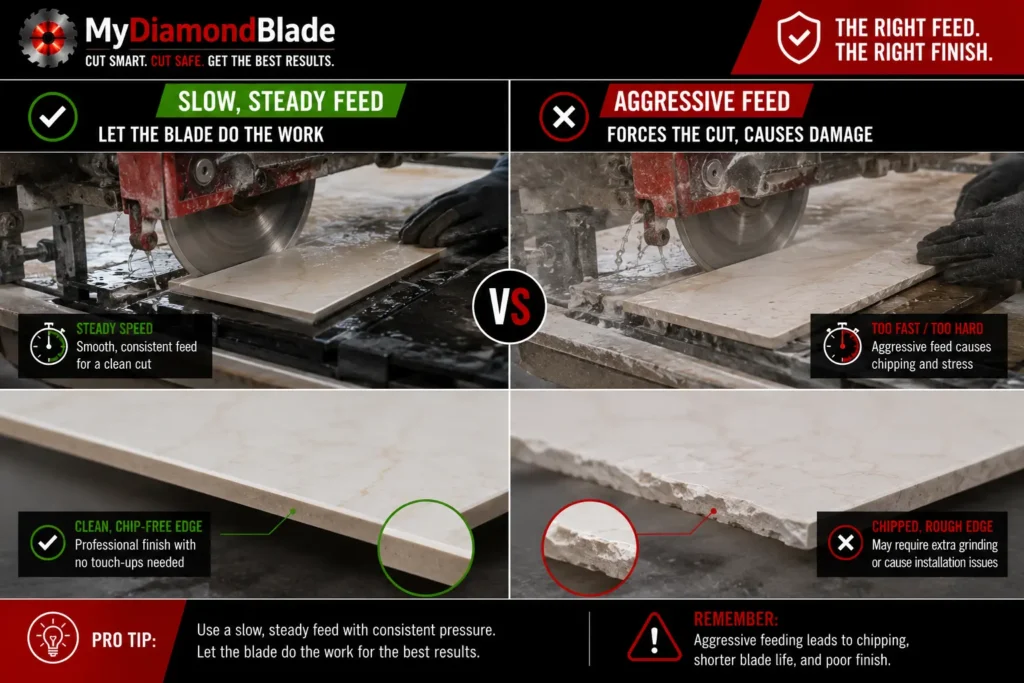

Step 4: Feed Slowly and Steadily
Let the blade do the work. Light, constant pressure is the whole technique; aggressive feeding is the number one cause of chipped glaze. Push too hard and the blade deflects, the diamonds skip and the glaze fractures ahead of the cut. A steady, unhurried pass keeps the rim in contact with the tile and lets the bond wear at the rate it was designed to. If you feel resistance building, you are feeding too fast.
On a 10-inch continuous rim wet saw, I learned to read the sound. A clean cut hums; a forced cut whines. The moment the pitch rose, I backed off the pressure and the edge cleaned up. That audible cue became my feed-rate gauge, more reliable than watching the blade.
Step 5: Finish the Edge
Make a light second pass to clean up any micro-chipping from the first cut, or dress the blade before the final cut if it has glazed.
A dressing stone 1/2 x 1/2 x 6 inches long refreshes a glazed blade, but use it sparingly; some worn diamonds are removed in the rejuvenation. For miter cuts, use a tilting-table wet saw with a continuous rim and feed even slower than a straight cut.
The angled edge concentrates stress on a smaller contact area, so patience is the difference between a crisp miter and a chipped one.
Even with the right setup, specific mistakes still cause chipping. The next section lists them as a pre-job checklist, so you can catch each one before the blade touches tile.
Common Mistakes to Avoid
The steps above fail when one of these specific errors creeps in. On a bathroom renovation last spring, I watched a segmented blade chew through a rectified porcelain tile and leave a chipped edge that cost me the tile and a return trip to the supplier. That mistake is why I now keep this checklist taped to my wet saw.
- Don’t use a segmented blade on porcelain. It chips edges and can crack the tile.
- Never run a wet-only blade dry. It destroys the blade rapidly.
- Choose a continuous rim for finish and longer life, not quicker cuts.
If speed is the constraint driving those mistakes, a turbo rim is the legitimate middle option. The next section covers it.
When a Turbo Rim Blade Is the Right Compromise
Time pressure pushes installers toward a segmented blade’s speed. The turbo rim is the safer compromise. It is a continuous rim with a serrated pattern, so it keeps constant contact with the tile while the serrations clear debris faster. That buys more feed speed than a continuous rim and a smoother finish than a segmented blade.
“Can you go any faster on these?” the foreman asked. We swapped to a turbo rim for the hidden cuts on a large-format porcelain job and finished the rough edges quicker without chipping a single visible edge.
A turbo rim is rated wet/dry, but wet cutting still matters on porcelain. Water keeps the bond cool and the diamonds cutting, which is exactly what prevents the heat that chips glaze. When the schedule will not wait, the turbo rim earns its place.
Expert Tip: Reach for a turbo rim on rough cuts or hidden edges when you need more speed than a continuous rim but a cleaner edge than a segmented blade.
Product Recommendation: StoneToolShop’s thin rim turbo diamond blade is designed for porcelain tile and stone, while MK Diamond’s Vector Plus covers masonry applications.
Porcelain Cost-of-Mistake Calculator
The wrong-blade trade-off is easy to underestimate until it is priced out. A single chipped edge on a large-format tile can cost more than the blade that caused it and that math changes how you should think about every cut.
On a bathroom job last spring I watched a helper run a segmented blade across a 24×48 porcelain tile to save thirty seconds. The gullets hammered the glaze and took a corner clean off. That one tile cost more than the blade he was using and we had to open a second box and hope the dye lot matched. The fix was a continuous rim, water and a feed rate slow enough that the blade sheared instead of pounded. That mistake is why I now price every cut by the tile it can ruin, not the blade it wears out.
| Scenario | Blade Cost | Tile Cost at Risk | Total Potential Loss | Recommended Blade |
|---|---|---|---|---|
| Segmented blade on porcelain chipped edge | $9.99 (Harbor Freight 4 in. segmented) | ~$52 (24×48 porcelain at $6.49/sq ft) | ~$62 | Continuous rim, water-cooled |
| Continuous rim blade correct technique | $9.99 (Harbor Freight 4 in. continuous) | ~$52 | ~$62 (no loss when done right) | Continuous rim, water-cooled |
| Turbo rim blade controlled feed | $14.95–$32.95 (StoneToolShop thin rim turbo) | ~$52 | ~$67–$85 | Turbo rim, slow feed, light pressure |
| Wet-only blade run dry | $69–$79 (Crowne Pro-Series 10 in. continuous) | ~$52 | ~$121–$131 | Wet saw with water supply |
The table makes the point plainly. A Harbor Freight segmented blade at $9.99 can destroy a tile worth roughly $52 in one bad pass. The blade is the cheap part. The tile is the expensive part and the labor to pull a broken tile off the wall and reset it is the part nobody prices until they are doing it.
When a cut does go wrong, the failure mode points to the cause. A chipped glaze, a cracked tile, a blade that stops cutting, a burning smell: each one tells you something specific about what you did wrong.

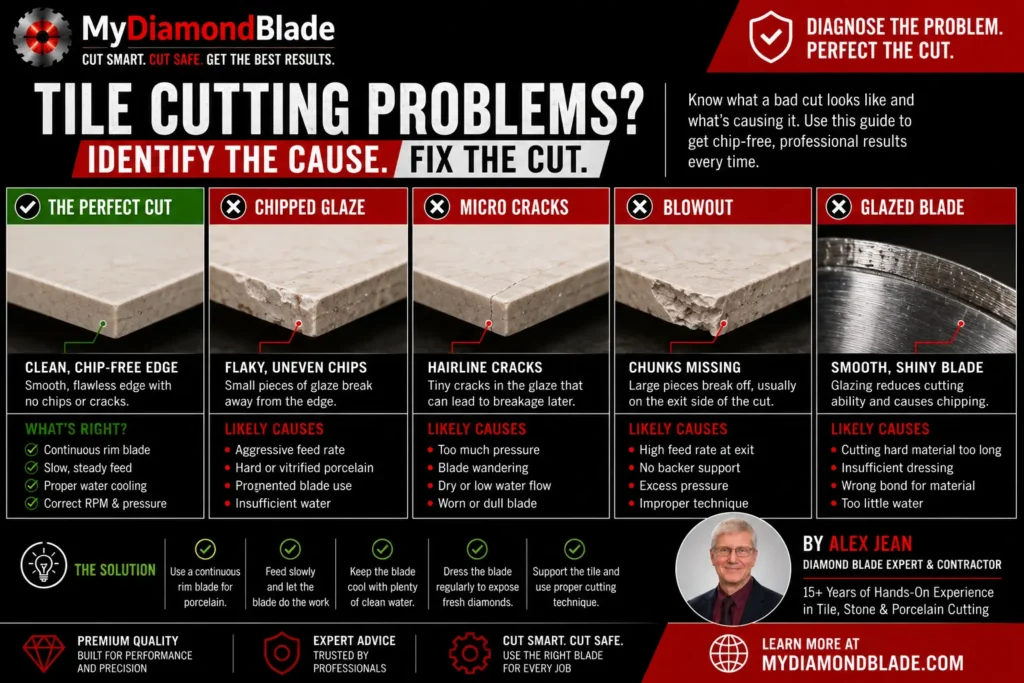

Chip-Free Cut Troubleshooting Visual Guide
When a cut fails, the failure mode is a clue, not a mystery. Match the symptom to the cause and you can fix the cut before the next tile.
The blade screamed and the tile edge came away with a ragged, white-hot line of chipped glaze. That high-pitched squeal and the smell of hot resin meant the bond had stopped wearing, the diamonds were glazing over and the blade was now hammering the porcelain instead of shearing it. A quick dressing with a stone brought the edge back, but the tile was already scrap.
Chipped glaze points to the wrong bond hardness or an aggressive feed. A hard bond on dense porcelain will not wear fast enough to expose fresh diamonds, so the blade rubs and chips. Slow the feed and use a soft bond.
Cracked tile usually means a segmented blade or an unsupported tile. The gullets between segments hammer the edge and can crack the tile, especially on large-format or rectified porcelain. Support the tile fully and switch to a continuous rim.
A glazed blade, burning, or a blade that stops cutting all share one cause: the bond has stopped wearing, a condition called glazing. Dress the blade with a dressing stone to expose fresh diamonds. If the blade is wet-only and you ran it dry, the bond can overheat and the blade is destroyed rapidly, not just glazed.
These fixes are grounded in manufacturer guidance and installer experience. The next section names the sources.
Expert Sources and First-Hand Experience
The recommendations above are not opinion. They trace to manufacturer guidance and on-the-job results. Norton specifies continuous rim blades for porcelain to get a good finish and longer life and Applied Diamond confirms the same: a smooth, unsegmented edge is what minimizes chipping and cracking. Rubi’s CPR and the Crowne Pro-Series 10-inch are both built for exactly this, marketed for chip-free porcelain cuts.
I ran a side-by-side on 24-inch rectified porcelain with a 4.5-inch grinder. The continuous rim fed slow and steady, leaving a clean edge. The segmented blade chipped the glaze within the first few inches, even at the same feed rate.
The final section maps the right blade to the tool you already own.
Final Recommendations and Tool Compatibility
The right blade depends on the tool in hand and the finish quality required. Match the rim to the machine.
On a wet tile saw, the Crowne Pro-Series 10-inch continuous rim is engineered for virtually chip-free cutting on porcelain. On an angle grinder running dry, the Rubi CPR continuous rim handles porcelain under 25 mm. For wet/dry flexibility, a turbo rim with protect teeth holds constant contact.
A glazed continuous rim sat on the bench, dull and useless after a long run of dry porcelain cuts, until a few light passes on a ½x½x6 inch dressing stone brought the diamonds back. That blade had cut tile under 25 mm for seasons and the habit it taught me is simple: a soft bond fed slowly wears away to expose fresh diamond instead of polishing over. So I dress sparingly, only when the rim stops cutting and I reach for the Rubi CPR’s 1/8 in segment thickness on dry grinder work.
For snap cutters, Vitrex manual cutters with a reversible mitre guide and magnetic side support handle ceramic and porcelain for circular cutouts, use diamond core drilling bits. Skip the discontinued Proline Snap 60.
Product Recommendation: For a wet saw, choose the Crowne Pro-Series 10-inch continuous rim blade; for a dry grinder, the Rubi CPR continuous porcelain blade; for wet/dry flexibility, a turbo rim blade with protect teeth.
The conclusion distills the whole decision into a few rules.
I don’t see a previous partial output in this conversation to continue from. It looks like the section was never started, so I’ll write the Conclusion section fresh now.
Conclusion
Every section above points to the same conclusion. Porcelain punishes the wrong blade instantly and the fix is not a more expensive blade. It is a different kind of blade.
Use a continuous rim with a soft bond for clean, chip-free porcelain cuts. The uninterrupted edge shears through the dense, brittle surface instead of hammering it and the soft bond keeps fresh diamond exposed so the blade cuts rather than glazes. Keep it wet and feed slowly.
Water carries away the heat that cracks tile and a slow feed keeps impact low. We have cut enough porcelain on site to know the rule cold: a continuous rim, wet, fed at a crawl and the edge comes off clean enough to butt against a rectified neighbour without a bead of caulk hiding the damage.
Rush the same cut dry and the glaze chips before the blade is halfway through. Choose a turbo rim only when speed matters more than a flawless edge. It is the honest compromise, faster than a continuous rim but rougher at the finish line. Leave segmented blades for concrete and masonry, never porcelain.
Those gullets are built to clear debris fast and on porcelain they deliver exactly the impact that chips the surface.
The blade that removes material by shearing, not hammering, is the one that leaves porcelain intact.
